Programmed Microcontroller

$12.95

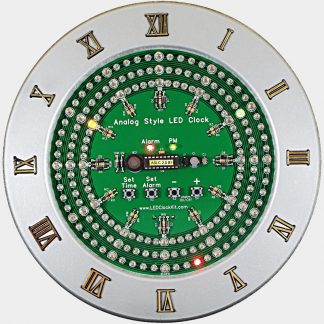

Programmed and tested microcontroller (reference designation U2) for the Analog Style LED Clock.

This Microchip PIC16F628A microcontroller is programmed and tested with the latest software, Version 2.0.0. See below for putting together your own kit or you can buy the complete Analog Style LED Clock Kit here.

This product is RoHS Compliant.

Out of stock

SKU: ASLC-U2 Category:

Description

Proudly featured on the cover of the March 2018 issue of Nuts and Volts magazine!

Sourcing Your Own Parts

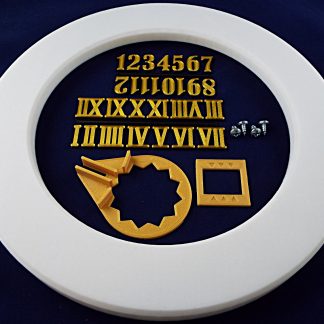

If you are interested in sourcing your own parts and don’t want to buy the complete kit, you can buy the Frame, PCB, and Microcontroller separately. If you have a programmer, you wouldn’t need to buy this microcontroller. You could buy a blank chip and program it yourself using the software available below.

Downloads

The User Manual contains complete assembly instructions, operation instructions, and the theory of operation. The Parts List has the complete list of parts you will need to build the clock.

See our downloads page to download the User Manual, Software or Parts List.

Additional information

Weight 0.1 lbs
Dimensions 1 × 0.5 × 0.4 in

Reviews

There are no reviews yet.

Be the first to review “Programmed Microcontroller”
