Printed Circuit Board

$23.95

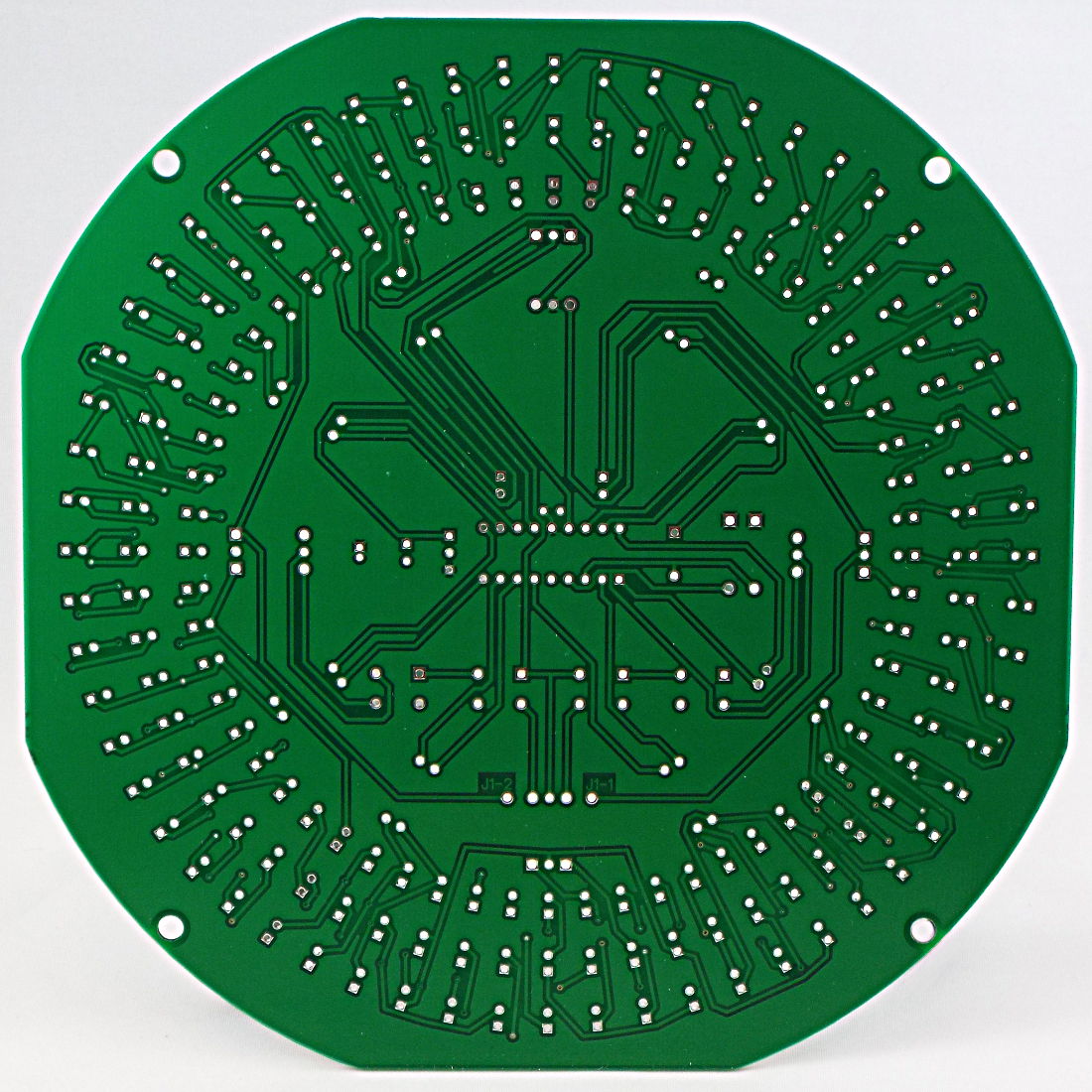

Printed Circuit Board (PCB) for the Analog Style LED Clock.

This is the bare printed circuit board used for the Analog Style LED Clock. It does not include any of the parts that would need to be installed on the board. See below for putting together your own kit or you can buy the complete Analog Style LED Clock Kit here.

This product is RoHS Compliant.

In stock

SKU: ASLC-PCB Category:

Description

Proudly featured on the cover of the March 2018 issue of Nuts and Volts magazine!

I'm having some trouble keeping the kit in stock since the Nut and Volts article came out. If I'm out of stock, try ordering from the Nuts and Volts store at
store.nutsvolts.com/project-kits/sku15871
Thank you for your patience and understanding!

Sourcing Your Own Parts

If you are interested in sourcing your own parts and don’t want to buy the complete kit, you can buy the Frame, PCB, and Microcontroller separately.

Downloads

The User Manual contains complete assembly instructions, operation instructions, and theory of operation. The Parts List has the complete list of parts you will need to build the clock.

See our downloads page to download the User Manual, Software or Parts List.

Additional information

Weight 0.2 lbs
Dimensions 6.2 × 6.2 × 0.1 in
